MCP Double Action Call Points

Name: MCP Double Action Call Points
Brand: TECHNIC TRAINERS PRIVATE LIMITED
Price: 2450.0 INR
Availability: InStock

Price 2450.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

MCP Double Action Call Points Specification

Shape
Rectangular

Connectivity Type
Wired

Coating Type
Durable polycarbonate housing

Working Temperature
-10C to +55C

Control Type
Manual

Coverage Area
Depends on system integration

Mounting Type
Wall mount

Installation Type
Surface or flush mounting

Technology
Double action, break glass or press-to-reset mechanism

Features
Double action safety, break glass or resettable, LED indicator, Tamper resistant, Clear status indicator, EN54 certified

Voltage
24V DC

Application
Manual activation of fire alarm systems, Suitable for public and commercial buildings

Diameter
Standard rectangular size (approx. 86 mm x 86 mm)

Color
Red with clear window

Reset Function
Key reset or replaceable glass element

Ingress Protection
IP24D

Accessories
Test key, replacement glass

Alarm Output
Normally open or closed contacts

Material
ABS / Polycarbonate construction

Compliance
EN54-11/CE Certified

Sounder Output
Optional integrated

Indicator
Built-in LED status indicator

Weight
Approx. 200g

MCP Double Action Call Points Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
7 Days

About MCP Double Action Call Points

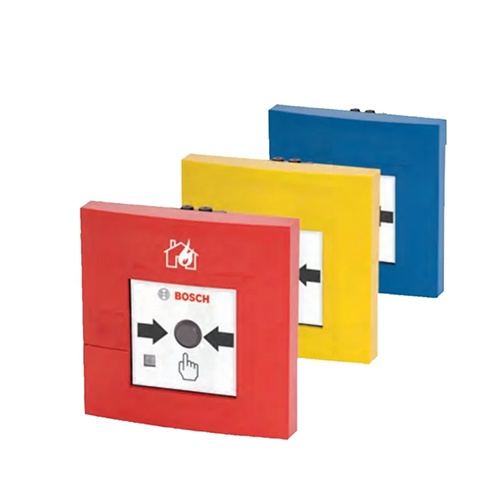

The FMC-210-DM Double-action Call Points are used

for manual triggering, and can be used in the Local

SecurityNetwork LSN and LSN improved. Form H

Manual Call Points are designed for outdoor

deployment, form G Manual Call Points are designed

for indoor deployment.

Advanced Double Action Safety Mechanism

The MCP offers enhanced security through its double action feature, requiring either breaking the glass element or using the press-to-reset option for activation. This design minimizes the risk of accidental alarms while ensuring quick and easy operation during emergencies, which is vital in high-traffic environments like public and commercial buildings.

Versatile and Durable Build

With a housing made from quality ABS/polycarbonate, the MCP Double Action Call Point withstands harsh conditions. Rated for temperatures ranging from -10C to +55C and equipped with IP24D ingress protection, it performs reliably both indoors and outdoors. Its rectangular size fits most standard installations, and the tamper-resistant design boosts system integrity.

Compliance and Integrated Features

The call point is EN54-11/CE certified, ensuring adherence to rigorous safety standards. The clear window, built-in LED indicator, and optional sounder output provide clear status visibility and timely alerts. Accessories like a test key and replacement glass make maintenance straightforward, maximizing uptime and operational convenience.

FAQ's of MCP Double Action Call Points:

Q: How do you activate the MCP Double Action Call Point in case of emergency?

A: To activate the call point, either break the glass element or use the press-to-reset mechanism, depending on the model provided. This double action ensures intentional, effective manual activation of the fire alarm system.

Q: What benefits does the built-in LED status indicator offer during usage?

A: The integrated LED indicator provides real-time visual feedback on device status, making it easy for users and facility staff to verify functionality and acknowledge alarm activation instantly.

Q: When should the replaceable glass element or key reset be used?

A: After an alarm has been manually triggered, use either the supplied key for a quick reset or replace the broken glass element to restore the MCP to ready status, depending on the situation and device configuration.

Q: Where is the optimal location to install this call point in a building?

A: Install the MCP Double Action Call Point on a wall in easily accessible, visible locations along escape routes, building entrances, and exits. It supports both surface and flush mounting, making it suitable for diverse architectural needs in public or commercial spaces.

Q: What is the process for maintaining the MCP Double Action Call Point?

A: Routine maintenance involves visual status checks using the LED indicator, testing operation with the provided test key, and replacing the glass element after any activation. Ensure electrical connections and mounting integrity during regular inspections.

Q: What makes this call point suitable for public and commercial buildings?

A: Its robust, tamper-resistant construction, EN54-11/CE certification, and double action mechanism enhance reliability and compliance, while the clear status indicator and flexible installation methods make it ideal for high-traffic environments.

Q: How is the MCP Double Action Call Point integrated into a fire alarm system?

A: The unit uses wired connectivity and provides both normally open and closed alarm outputs. Installation should be performed by qualified personnel, connecting it to the fire alarm control panel for effective manual alarm initiation and clear status reporting.
