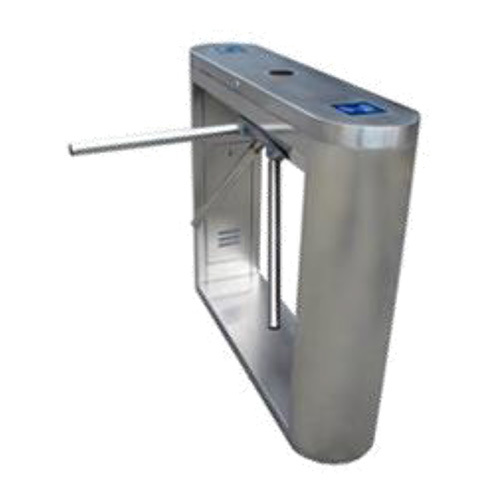

TK-TTL-SS-1 Tripod Turnslite

Get a Price/Quote

MOQ : 1 Unit

TK-TTL-SS-1 Tripod Turnslite Specification

Connectivity Type
Wired for Access Control, Optional RS485/TTL

Standard
CE Certified, ISO Compliant

Size
Length 420mm x Width 330mm x Height 1000mm

Operating Mode
Single or Bi-directional Passage

Interface
Access Controller, Push Button, RFID Card Reader or Biometric

License Free
No

Mounting Type
Floor Mounted

Technology
Electro-Mechanical Drive with Microprocessor Control

Special Features
Bi-directional; Automatic Reset; Adjustable Passage Direction; LED Direction Indicators

Application
Office Buildings, Metro Stations, Airports, Corporate Lobbies

Power Supply
AC 220V 10%, 50Hz / 60Hz

Output Formats
Dry Contact, Relay

Passage Width
About 550mm

Tripod Arm Length
510mm

Unlock Time
Adjustable (Default 3 seconds)

Power Consumption
< 40W

Finish
Hairline/Brushed Satin

Housing Material
Stainless Steel (Grade 304)

Operating Temperature
-28C to +60C

Protection Level
IP44

Weight
Approx. 40 kg

Passing Speed
20-30 persons per minute

Operating Humidity
5% - 80% RH (Non-condensing)

Emergency Mode
Arm Drop Automatically on Power Failure

Input Interface
Relay Signal Input

TK-TTL-SS-1 Tripod Turnslite Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About TK-TTL-SS-1 Tripod Turnslite

Take advantage of the elite TK-TTL-SS-1 Tripod Turnslite, the top-rated solution for secure and efficient entry management. Crafted from imposing Grade 304 stainless steel, this terrific turnstile is venerable for reliability across diverse applications, including office buildings, metro stations, airports, and corporate lobbies. With a passage width of about 550mm and an impressive passing speed of 20-30 persons per minute, the device operates seamlessly between -28C to +60C and 5%-80% RH. Features like bi-directional access, automatic reset, LED direction indicators, and emergency arm drop, make it a preferred choice for advanced security integration. CE and ISO compliant, the TK-TTL-SS-1 promises robust connectivity and performance for elite environments.

Versatile Application Surface: Ideal Use of TK-TTL-SS-1

TK-TTL-SS-1 Tripod Turnslite is designed for floor mounting, making it a perfect fit for imposing entrance areas. Common applications include commercial office lobbies, airport terminals, metro stations, and corporate hubs. The device excels on durable surfaces-marble, concrete, or tiled floors-ensuring steadfast operation. Used extensively to manage pedestrian flow, enhance security, and streamline authorized entry, this venerable turnstile brings elite order and efficiency to any high-traffic public or private venue.

Premium Delivery & Sample Policy for Export Market

Experience prompt shipment of the TK-TTL-SS-1 Tripod Turnslite, catering to both domestic and export markets. Delivery times are competitive and tailored to client requirements. Premium sample units are available to evaluate product quality and functionality firsthand. Our sample policy allows for easy request and shipment processing, ensuring clients receive the best fit before large-scale procurement. With our reliable supply chain, you're assured of timely and safe delivery for every order.

FAQ's of TK-TTL-SS-1 Tripod Turnslite:

Q: How is the TK-TTL-SS-1 Tripod Turnslite typically used in security management?

A: The TK-TTL-SS-1 Turnslite is primarily used to control and monitor pedestrian passage, ensuring only authorized individuals access secure zones in office buildings, metro stations, airports, and similar venues. Its bi-directional function and compatibility with access control systems make it highly effective for elite security management.

Q: What benefits does stainless steel Grade 304 construction provide for the TK-TTL-SS-1?

A: Grade 304 stainless steel offers imposing durability, corrosion resistance, and an attractive, brushed satin finish, ensuring the turnstile remains robust and aesthetically pleasing even in high-traffic or challenging environmental conditions.

Q: Where can the TK-TTL-SS-1 Tripod Turnslite be installed for optimal performance?

A: This turnstile is adaptable to imposing surfaces such as marble, tile, or concrete floors, making it suitable for application in lobbies, entryways, and transit points where reliable, secure, and quick passage management is essential.

Q: What is the process for integrating the TK-TTL-SS-1 with access control systems?

A: Integration is straightforward and achieved via wired connections to access controllers, push buttons, RFID card readers, or biometric systems. Optional RS485/TTL interfaces can also be used, providing flexibility for advanced system setups.

Q: When does the automatic arm drop feature of the TK-TTL-SS-1 activate, and what is its purpose?

A: The automatic arm drop is triggered during a power failure, allowing for immediate and safe passage in emergencies, thus enhancing user safety and regulatory compliance.
